Digital oscilloscope

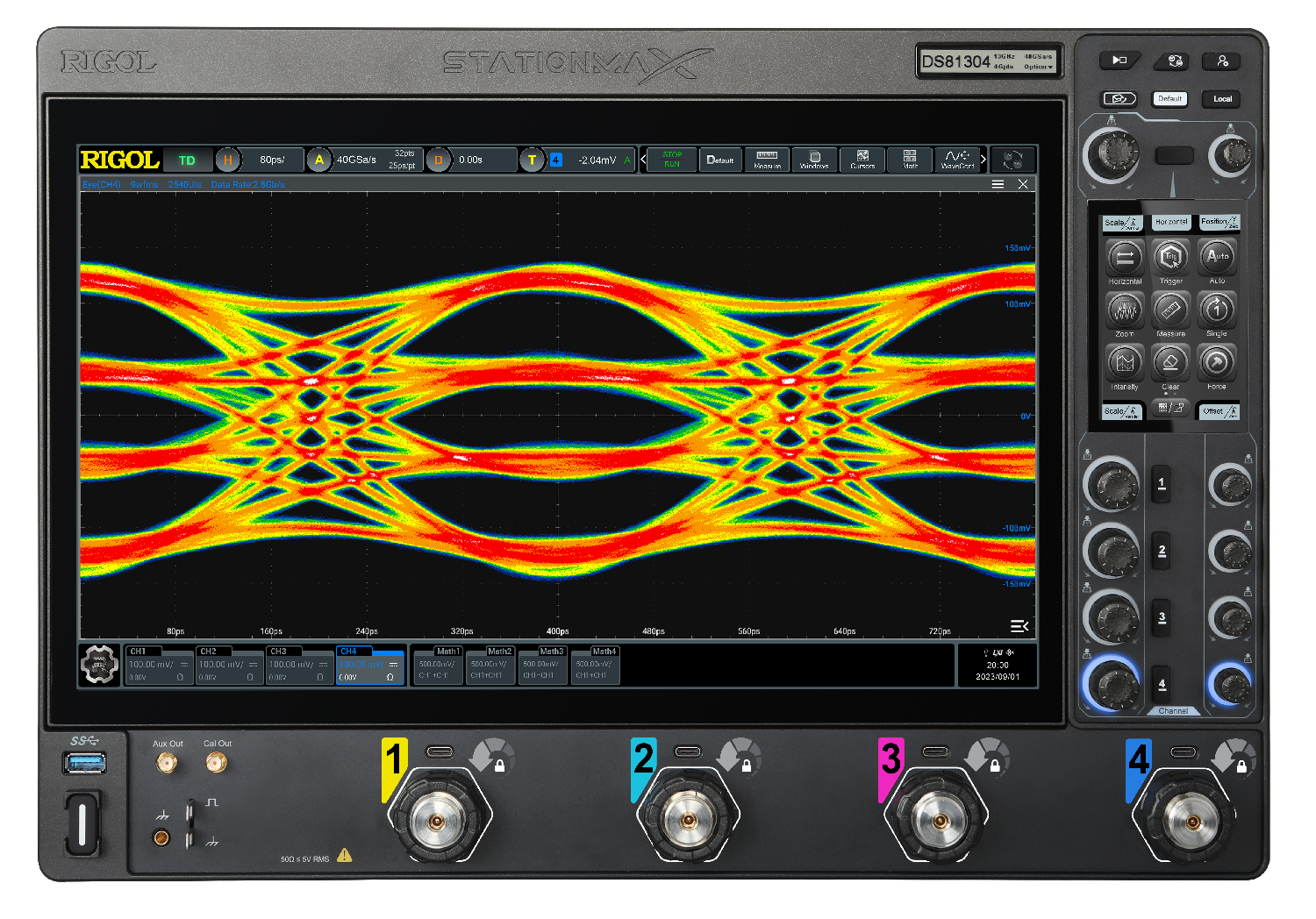

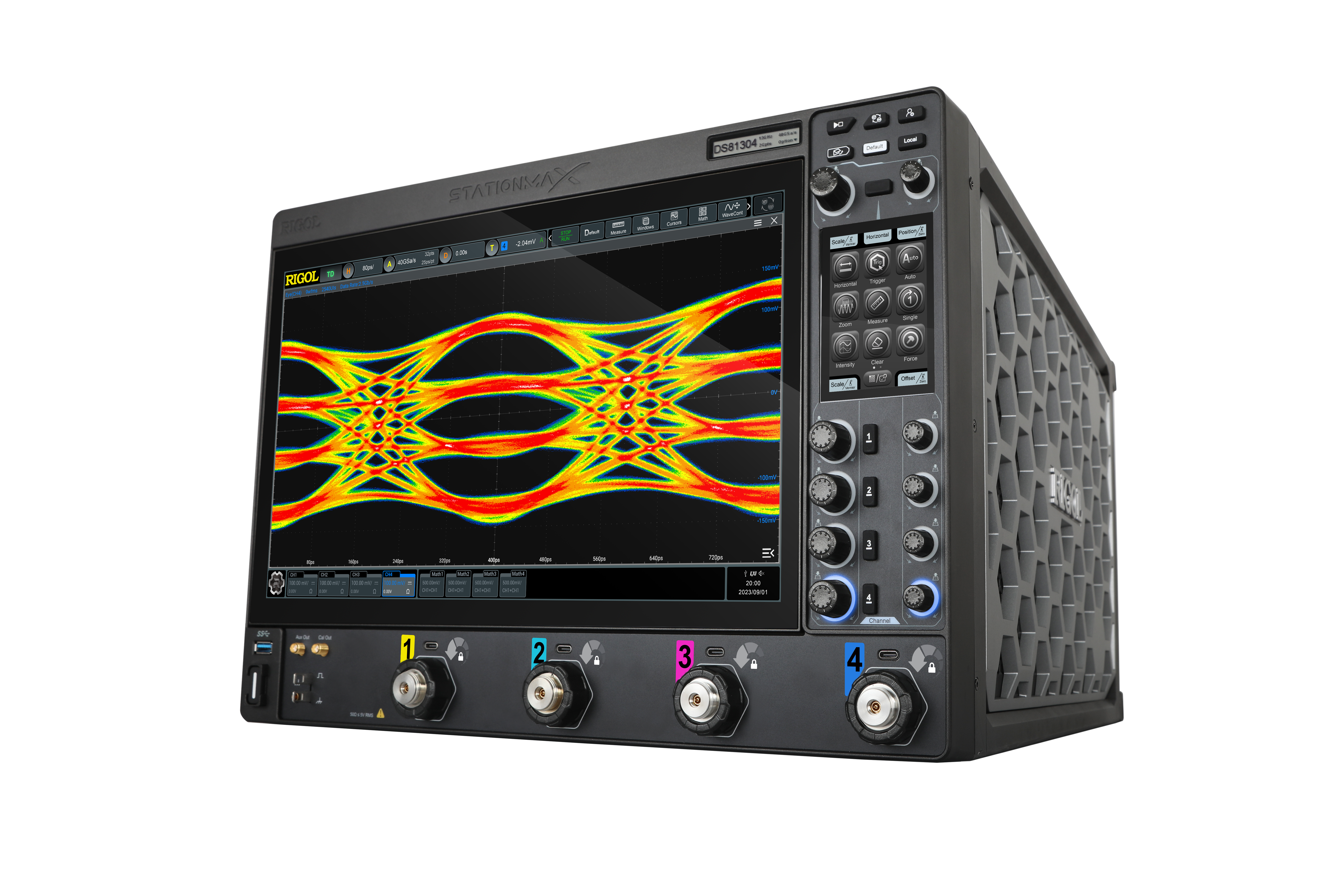

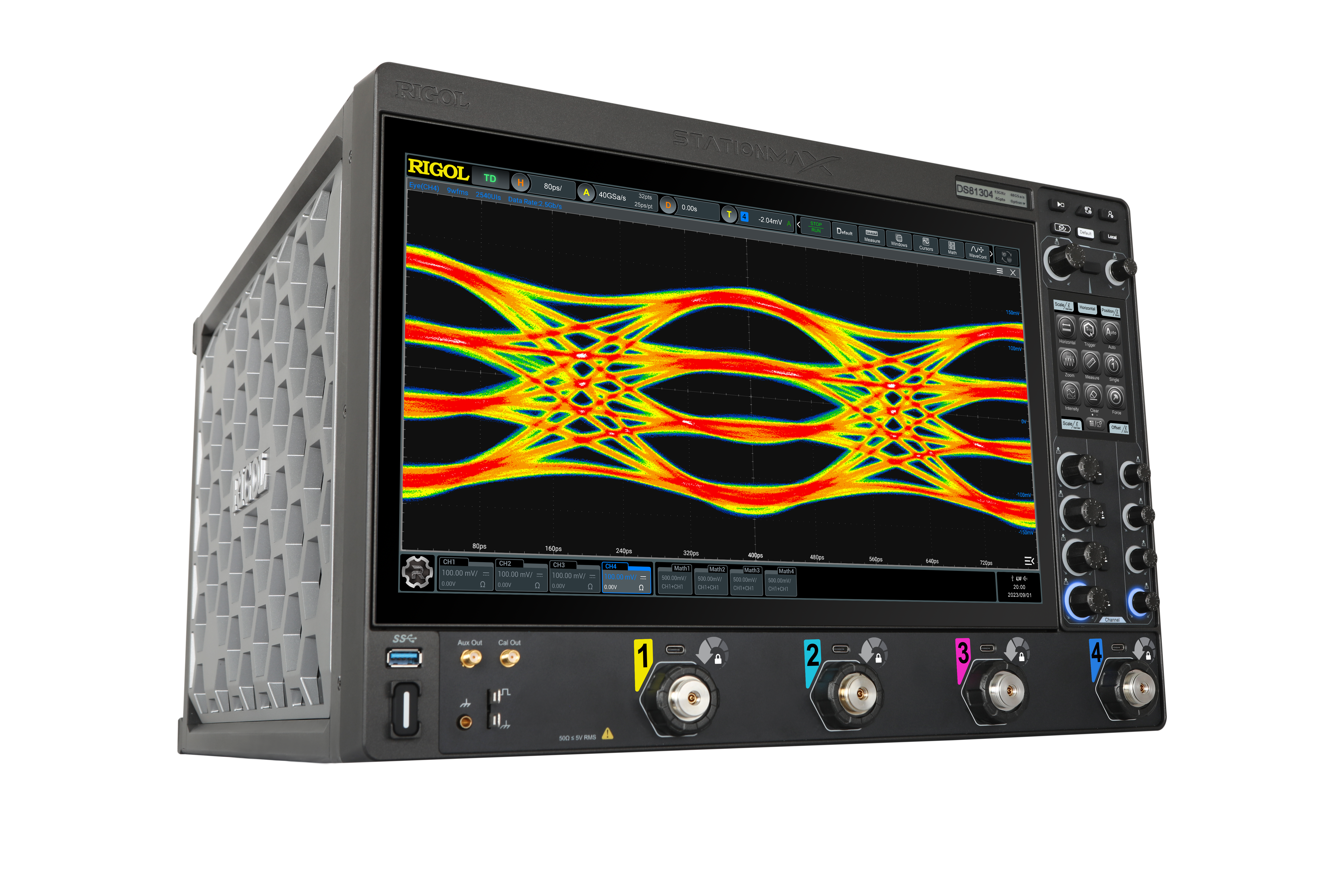

The DS80000 series digital oscilloscope is the eighth generation digital oscilloscope independently developed by RIGOL. Based on the StationMAX II platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analog bandwidth of 13GHz. In addition to hardware improvements, the DS80000 series digital oscilloscope also provides a variety of user-friendly designs to ensure a high-quality customer experience.
13GHz
40GSa/s
4
4Gpts(opt.)
250,000wfms/s

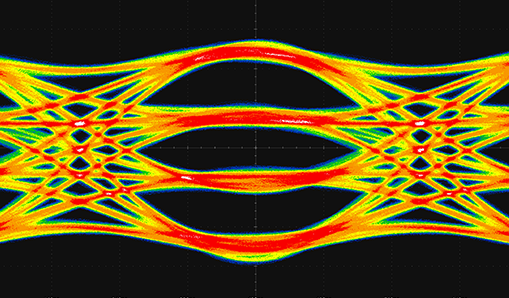

Higher bandwidth, higher sampling
Based on the StationMAX II hardware technology platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analog bandwidth of 13GHz, which can more realistically restore signals and cover more applications.

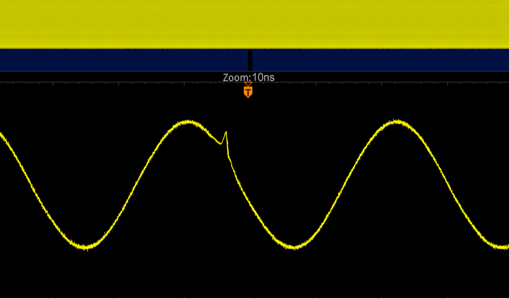

Deep storage high fidelity
Based on the RIGOL new generation UltraVision III platform, it achieves a maximum storage depth of 4Gpts, allowing DS80000 to have high-fidelity signal acquisition capability and capture waveforms for longer periods of time at high sampling rates.

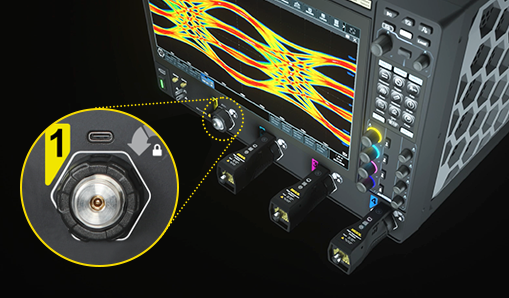

New interface design
The DS80000 series adopts the RIGOL SmartProbe 2.0 interface, supports direct signal connection with 3.5mm connectors, and is equipped with RIGOL's self-developed probe adapter. It can also be backward compatible with the previous generation of RIGOL original probes, providing convenience for your use.

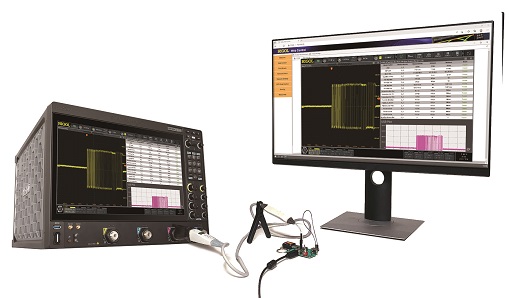

Meet more high-speed application scenarios
DS80000 has a maximum analog bandwidth of 13GHz and a maximum real-time sampling rate of 40GSa/s, which can meet the performance verification of high-speed devices and systems, high-speed bus compliance analysis, DDR debugging and other application scenarios, helping engineers solve more testing challenges.
-
MODELBANDWIDTHANALOG CHANNELSREAL-TIME SAMPLE RATEMAX. MEMORY DEPTHWAVEFORM CAPTURE RATEDIGITAL CHANNELSBUILT-IN SIGNAL SOURCEPRICE (Exclude Taxes)
-
DS8130413GHz440GSa/s4Gpts(opt.)250,000wfms/s--
-
DS808048GHz440GSa/s4Gpts(opt.)250,000wfms/s--
-
DS806046GHz440GSa/s4Gpts(opt.)250,000wfms/s--
-
DS8100410GHz440GSa/s4Gpts(opt.)250,000wfms/s--
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
DS80000 DatasheetsDS80000 Datasheets - V1.0
- 2025-05-08
-
PDF
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
DS80000 User GuideDS80000 User Guide
- V1.0
- 2025-05-08
-
PDF
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
DS80000 Quick GuideDS80000 Quick Guide
- v1.0
- 2025-05-08
-
PDF
- NAME
- VERSION
- RELEASE DATE
- DOWNLOAD
-
DS80000 Programming GuideDS80000 Programming Guide
- V1.0
- 2025-05-08
-
PDF
